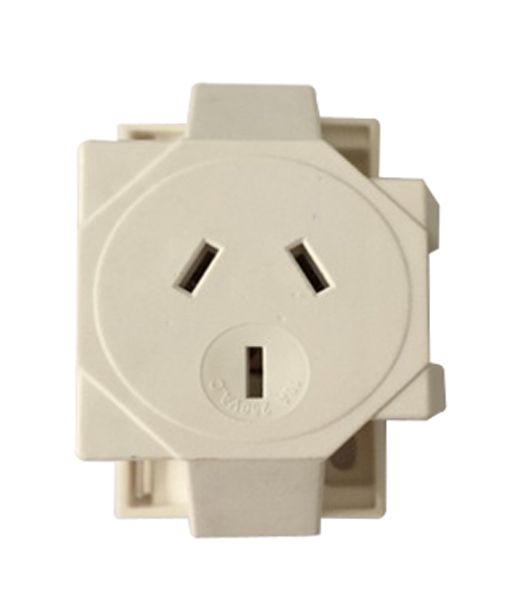

3 Pin Quick Connect Socket - 240v White

3 Pin surface socket, suits LED downlights and exhaust fans.  This is a quick connect model, meaning only the outer white sheath has to be removed from the electrical cable and the inner cables can be easily crimped into place without the need to cut the wires and screw into place. Comes with side entry cable holes and must be wired by an electrician.

$4.50
Availability:
In stock
SKU
Sock2

Specifications:

  • Standard Australian 3 Pin Configuration
  • Quick Connect crimps
  • PC Plastic construction
  • 240volt
  • IP20 Rated
  • Warranty 1 Year
  • Polarity Sensitive
  • Recommended cable 1.00mm2 to 2.5mm2
  • 10amp current rating

The quick connect system works by removing the white outer layer of insulation from the electrical cable.  The inner Red / Black and Green wires are then aligned with the crimps and the housing is snapped shut connecting the wires.

Please note: All electrical work in Australia must be carried out by a licensed Electrician.
