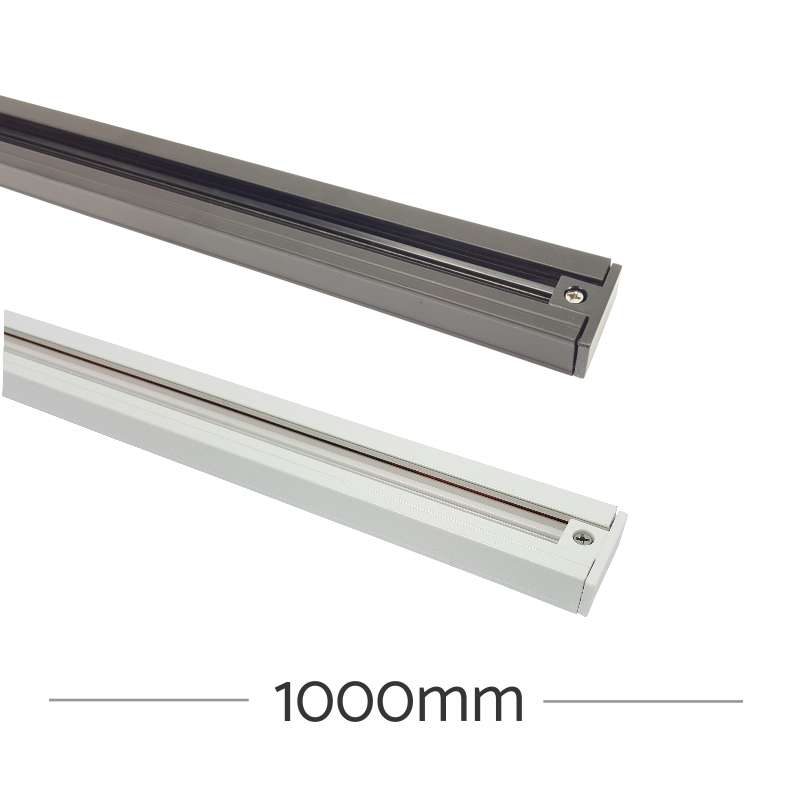

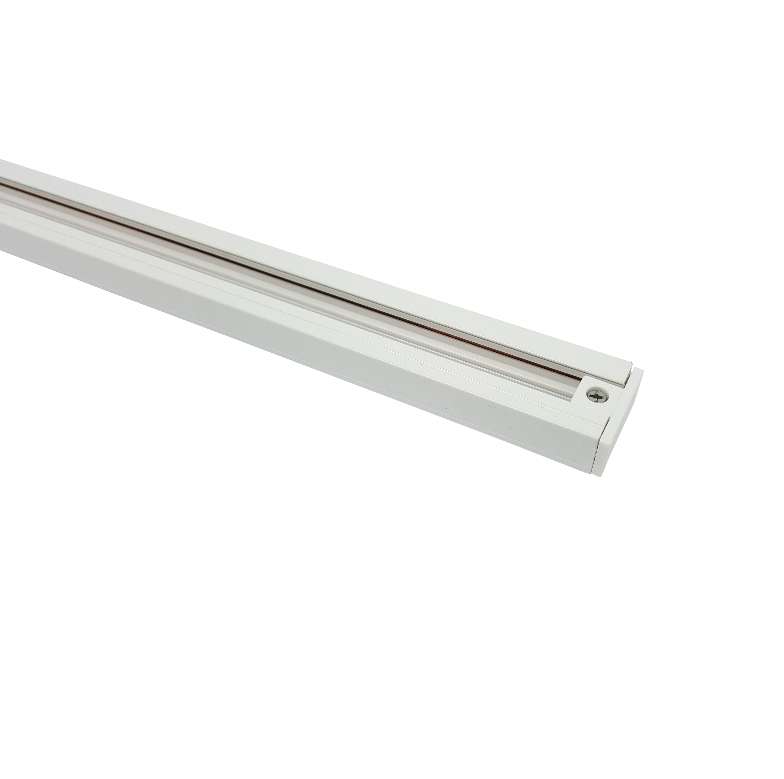

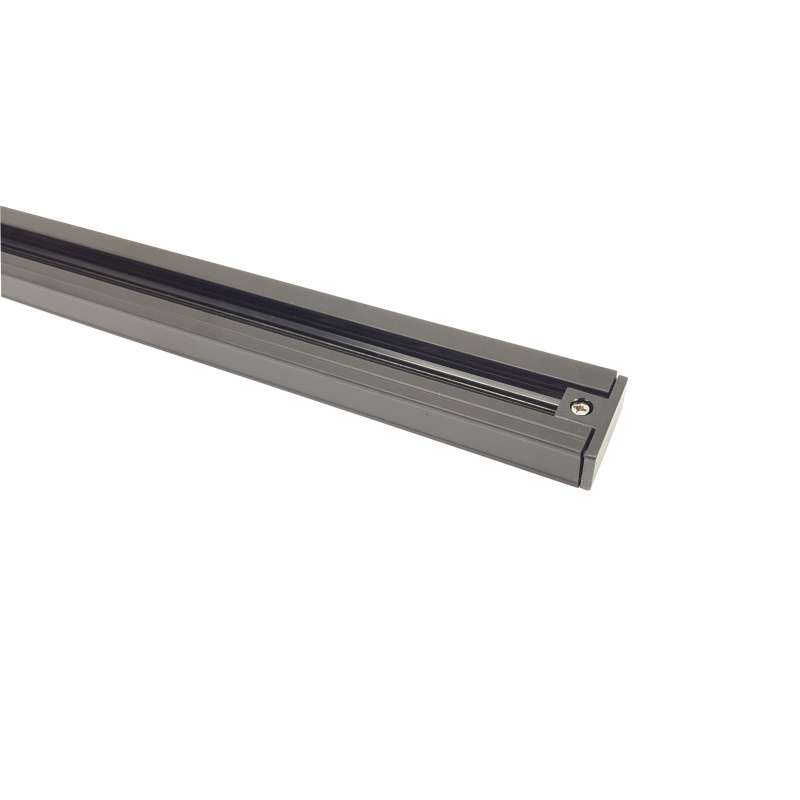

Ailia Track - 1m Black or White
Single circuit track is used in conjunction with track spotlights, the track is mounted to the ceiling and connected to the mains power. Individual track spotlight heads can then be plugged into the track, keep adding track spotlights until you have the necessary amount of light for the space you wish to light.
All Ailia track is supplied with a live end ready for connection to the mains. There are a number of different adapters that can be used with the track to change direction and configure to the way that best suits you.
Single circuit track means all the lights on the length of track will turn ON at the same time when powered. If you prefer different switching options within the same length of track you need 3 circuit track.
Specifications:
- Black or White Aluminium track
- 240volt connection
- Includes Live end
- Includes end cap
- Length 1000mm - includes the live end.
- Height - 16mm
- Width - 34mm
Maximum number of lights depends on the wattage of the light to be added to the track, however with LED lights the power draw is kept to a minium so a number of heads can be connected on the one length of track.
Live End - The track requires a live end which provides a connection point for the mains power. Each length of track comes with a live end included however there may be instances where connection at one end is not suitable. The Centre Feed Joiner, L Connector, T Connector and X Connector are all joiners that can be used to connect the track together but these points also allow for an extra electrical connection.
