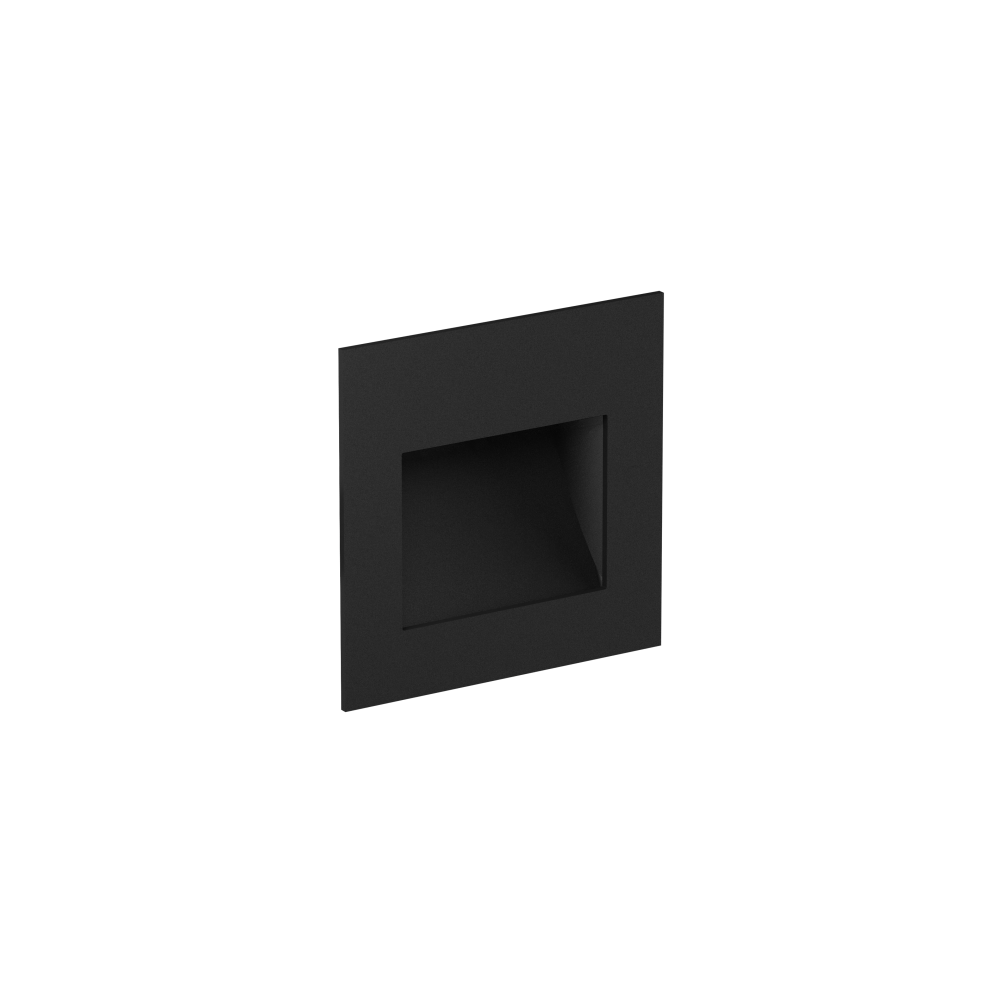

Cuadro 2W 24VDC Steplight - 3 Colours

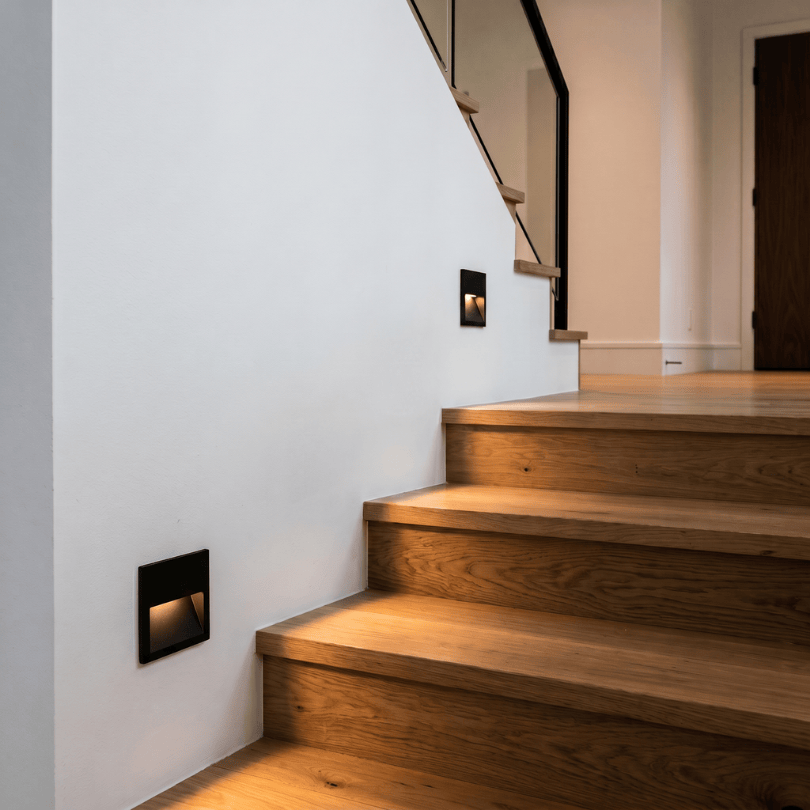

The Cuadro Steplight is a recessed 2watt LED steplight which can be used inside or outside and is suitable for any step or pathway lighting. This model is available in three textured finishes black, grey or white. The Cuadro Steplight is low voltage so requires a driver to power the lights, this is sold separately.
Specifications
- IP65
- 24VDC Constant Voltage
- Powder Coated Aluminium
- Black, Grey or White Finish
- Driver Required (sold separately)
- 2watt Integrated LED
- 3000K Warm White or 4000K Natural White
- Approx 58 Lumens
- 90° Beam Angle
- Non-Dimmable
- Fascia 90mm x 90mm
- Canister 77mm x 77mm
- Plastic wall box included with light
Notes
This product requires a 24VDC Constant voltage driver to power the lights (sold separately). One driver can be used to power multiple lights.
The wall light is to be recessed into the wall, the correct installation procedure is to purchase the light and give the electrician the wall box to be installed. This is then recessed into the brick work and the plasterers come in to white set the wall flushing up the wall box. After the wall has been plastered and preferably painted before the wall light is fitted into the wall box.
