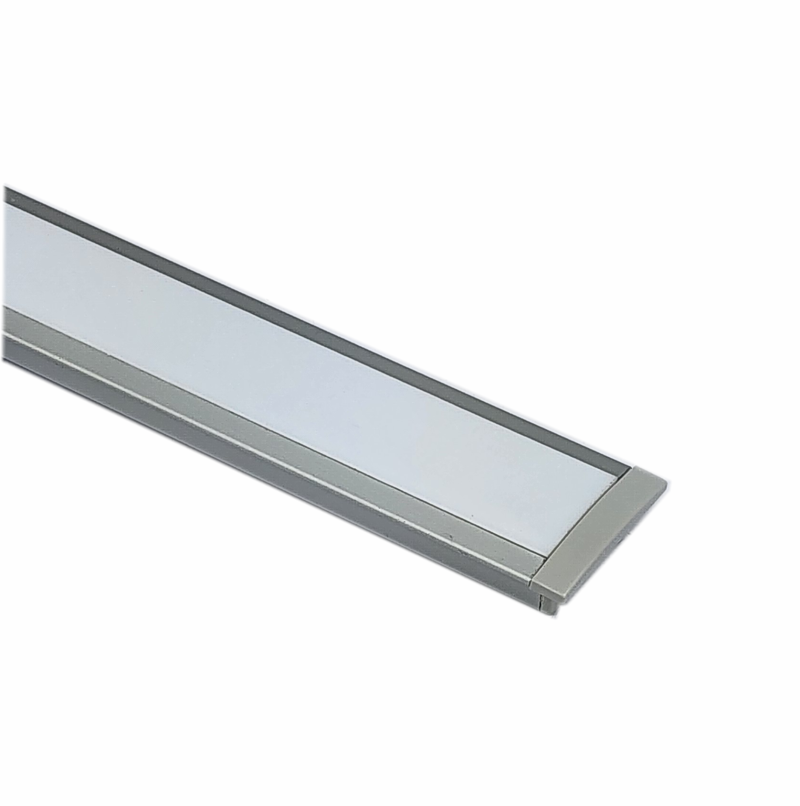

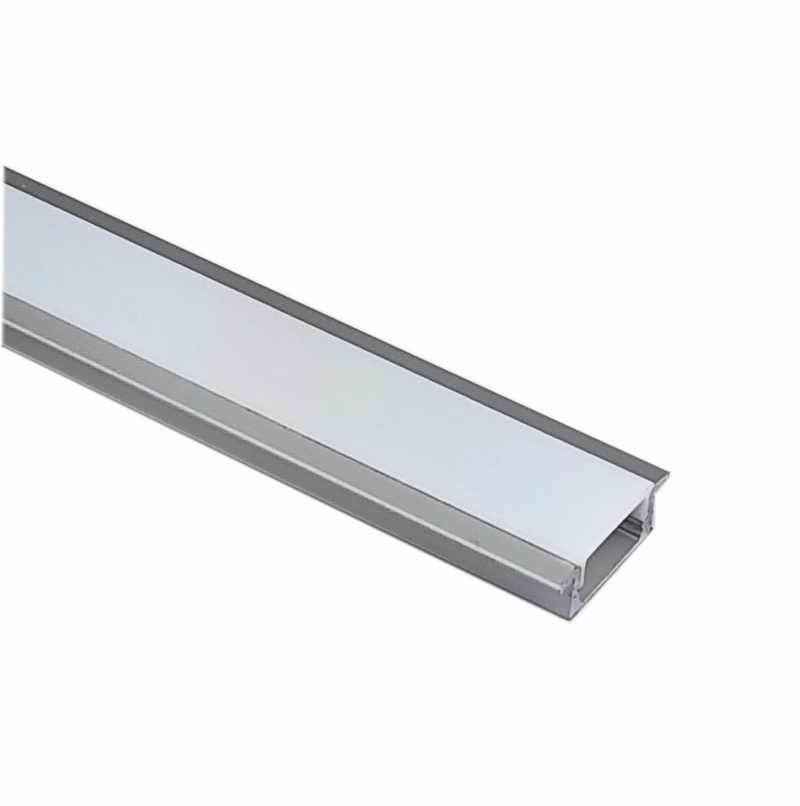

EXT-001- Sml Recessed Alum Extrusion

Extrusion used to house LED Strip (Sold separately), comes with a Acrylic opal diffuser.  Main aluminium housing is finished in aluminium silver.  This model is mostly used in recessed applications, the side wings help hide any rough edges of the channel that will be cut to recess the extrusion.

Note:  This extrusion is only 8mm deep which means that the dots of the LED strip used can sometimes be visible through the opal diffuser. If you prefer a consistent light then use the deeper EXT-003 extrusion.



Note: This strip comes in a 2m length but is sold by the Meter.  The price listed here is for a 1 metre length, must order in 1 metre increments.

$12.00
Availability:
In stock
SKU
3548

EXT-001 Recessed Extrusion - Specifications:

  • Aluminium construction
  • Plastic opal diffuser
  • End caps supplied

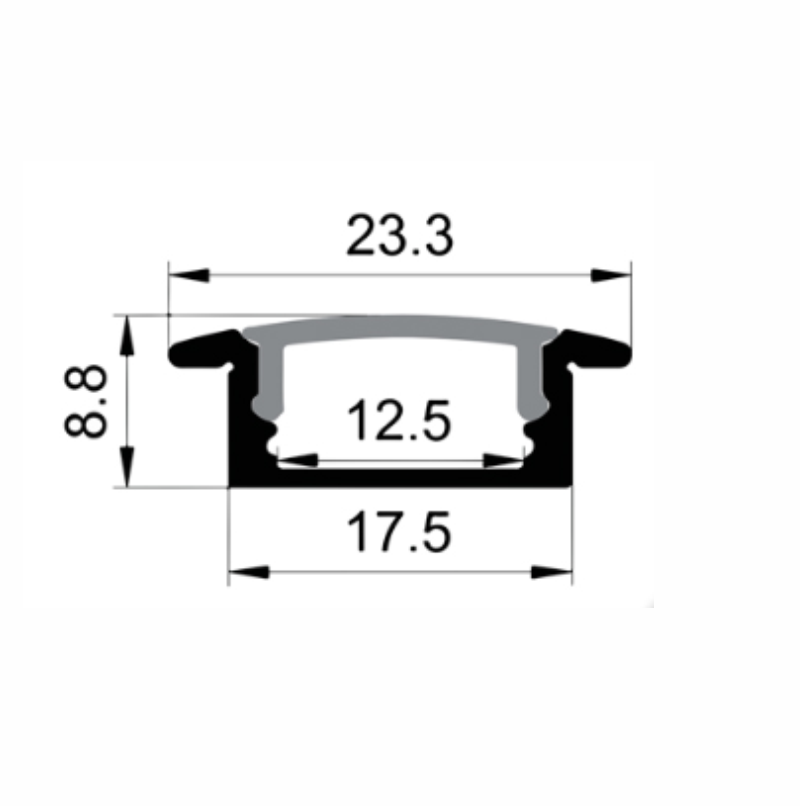

  • 23.1mm wide x 8.8mm deep
  • Small wings aid recessed installation.
  • Charge per meter. (comes in 2m Lengths but can be cut)

Note: This extrusion is very shallow at only 8mm, there is not a great distance between the LED strip and the opal diffuser. The dots from the LED strip can still be visible in the opal diffuser.  If you prefer a smoother more consistant light without the dots of light, choose the deep extrusion EXT-003 and EXT-004.
