Constant Current 300ma Driver - Unios

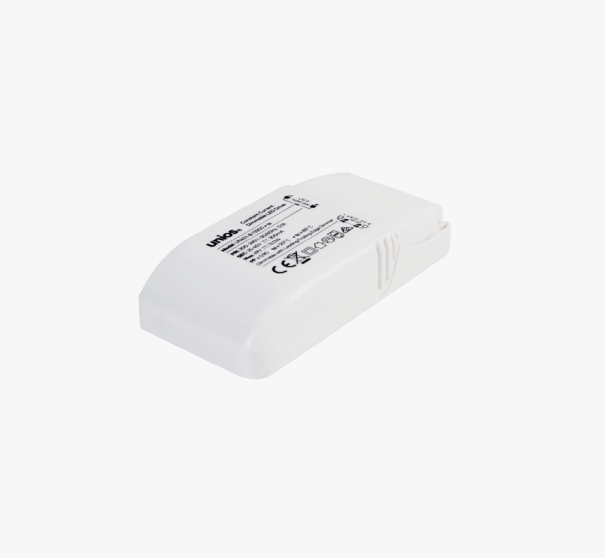

Constant Current Driver - 300ma current output - 12watt maximum load. This driver is a Unios product which is used on their downlights. This driver is of the constant current type and delivers 300ma to the LED downlight.
This driver is a flicker free design and is fully dimmable with a Triac dimmer. Flicker free downlights as the name implies do not turn the light on and off at 50 hertz like traditional downlights, the light is constantly on. Flicker free drivers provide health benefits for a range of reasons.
- Plastic Housing
- 240volt Input
- Flex and Plug included
- IP20 Indoor Rated
- Flicker Free design
- Constant Current Type Driver
- Max Load - 12watts
- Current Output - 300ma current
- Voltage Output - 25-40v
- Fully Dimmable - Leading or Trailing edge

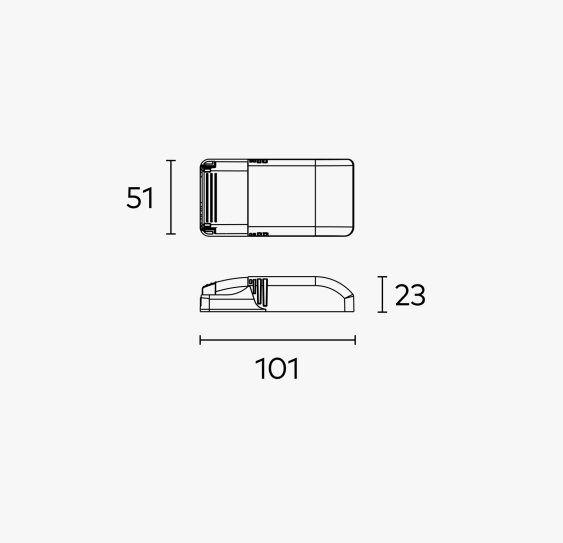

- Length - 101mm
- Height - 25mm
- Width - 53mm
This driver is a Unios product and is primarily used on their Apex, Titanium and Ion range of downlights.
Note: When matching this driver to an LED downlight the current output must be suitable for the LED, overloading the chip with a higher current can cause damage to the LED Chip set. It is also important to match the maximum wattage, incorrect loading can cause the driver to flash on and off. If this is the case, switch the light off and use a different driver.
